GT8

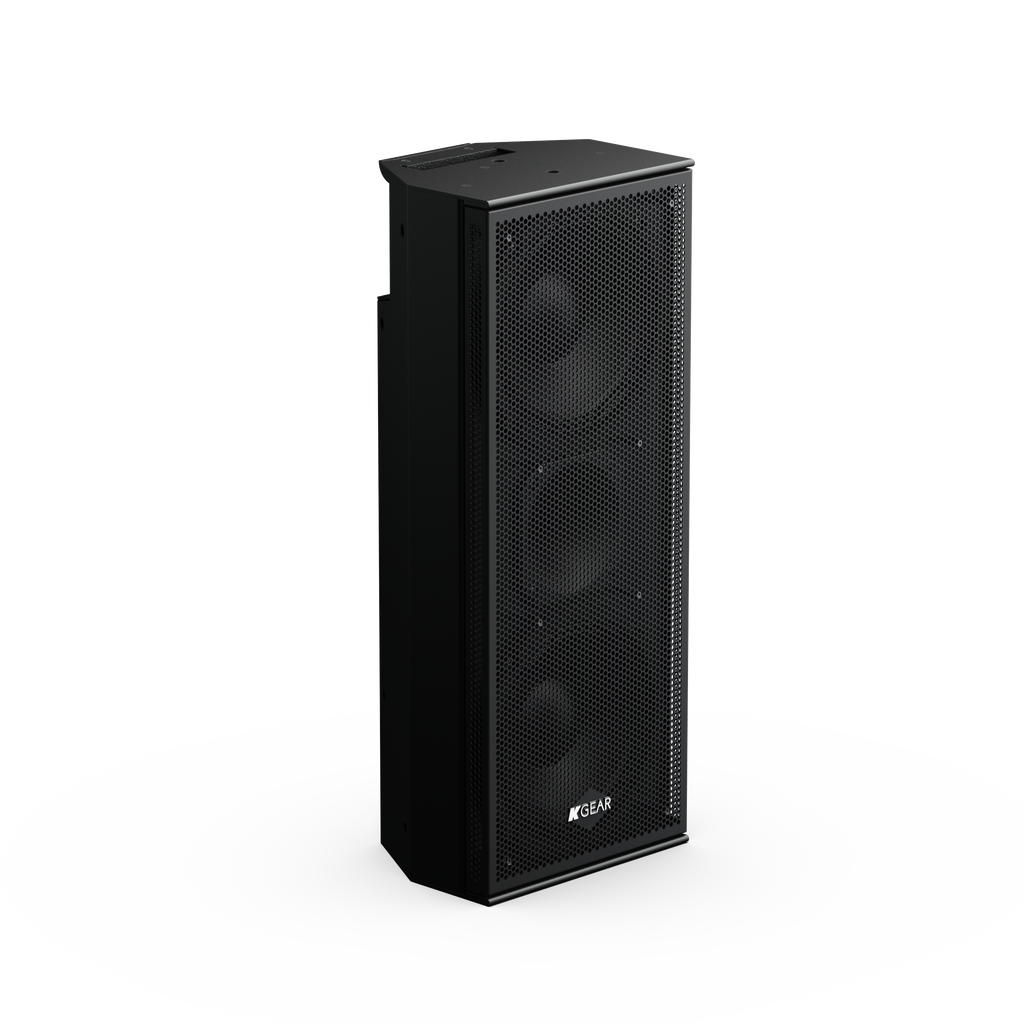

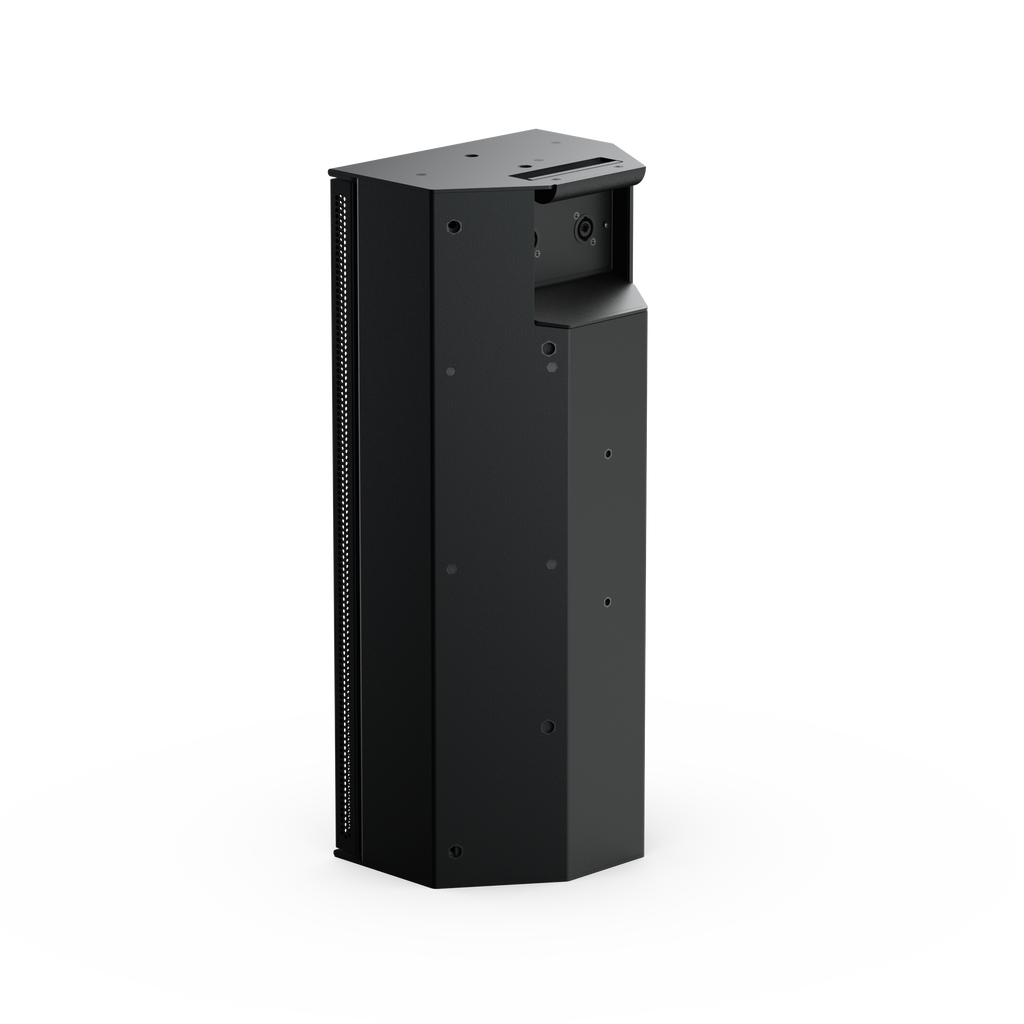

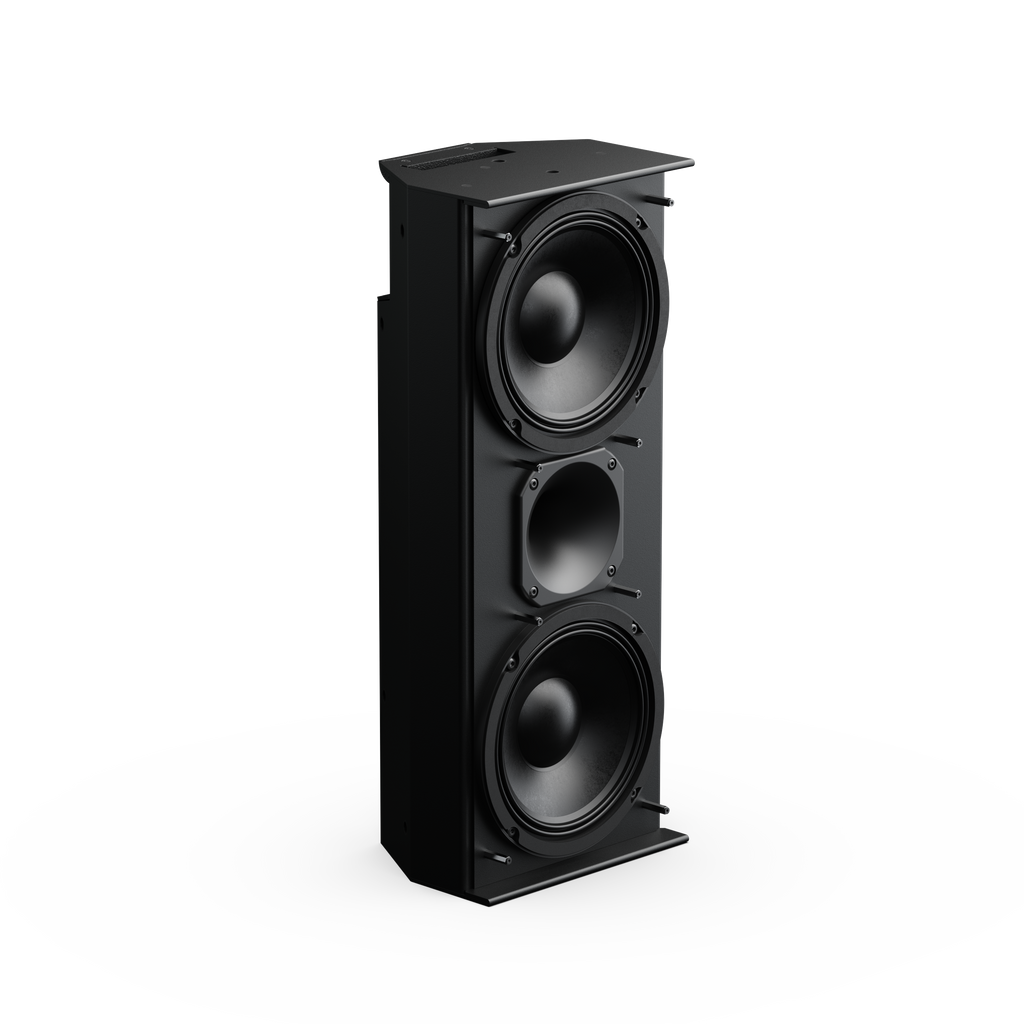

GT8 by KGEAR brings versatility and performance into a compact point-source format. Featuring an 8” woofer, 8” passive radiator, and 1” compression driver, it delivers a powerful 128 dB SPL with a clear, balanced full-range response. Its robust enclosure and compact footprint make it ideal for small venues, retail spaces, worship environments, and portable PA applications.

The rotatable horn ensures controlled 60° × 80° coverage for consistent sound distribution. Designed for flexibility, the GT8 can be deployed as a single point source or configured in vertical and horizontal arrays. With dual SpeakOn NL4 connectors and 8-ohm impedance, the GT8 integrates effortlessly into fixed installations and rental systems.

Cuota:
)

Specifications

General

  • Type:

    Point source passive loudspeaker

  • Transducers:

    8" ferrite magnet woofer
    1" compression driver (patented)
    8’’ passive radiator

  • Frequency Response:

    Natural: 80 Hz - 20 kHz (-6 dB)

    Full-range: 60 Hz - 20kHz (-6 dB)

  • Max SPL:

    Natural: 130 dB (peak) half space

    Full-range: 122 dB (peak) half space

  • Rated Power:

    450 W

  • Connectors:

    2x SpeakOn NL4
    1+ 1- (signal); 2+ 2- (through)

  • Nominal Impedance:

    8 Ω

Regulations

  • Coverage:

    V. 60° - H. 90° Rotatable

Handling and Finishes

  • Dimensions (W x H x D):

    (WxHxD): 579 x 230 x 179,5 mm
    (22.8 x 9.06 x 7.07 in)

  • Weight:

    9,5 kg (20.94 lbs)

  • Material:

    Aluminum

  • Colors:

    Black

  • IP Rating:

    IP54 (with dedicated accessory K-IP65KITA - K-IP65KITB)

Descargar

GT8 DATASHEET

Preliminary V.01

GT8 QUICK GUIDE

V.0.1
